GFM-Dry Bead Mill
Highly efficient and precise powder micronization processing equipment for refining powder particles.
Industry application
01
Dry Grinding Mill provides more uniform grinding force, ensuring stable fine grinding effect.
02
Real-time finess control, with an extremely narrow particle size distribution.
03
Enhanced by fluidized bed technology achieving higher classification efficiency.
04
Low-cost · Submicron · Zero-waste
05
Wear-resistant · Temperature-stable · Controllable
Same series of products
BY-GFM 1L
BY-GFM 5L
BY-GFM 60L

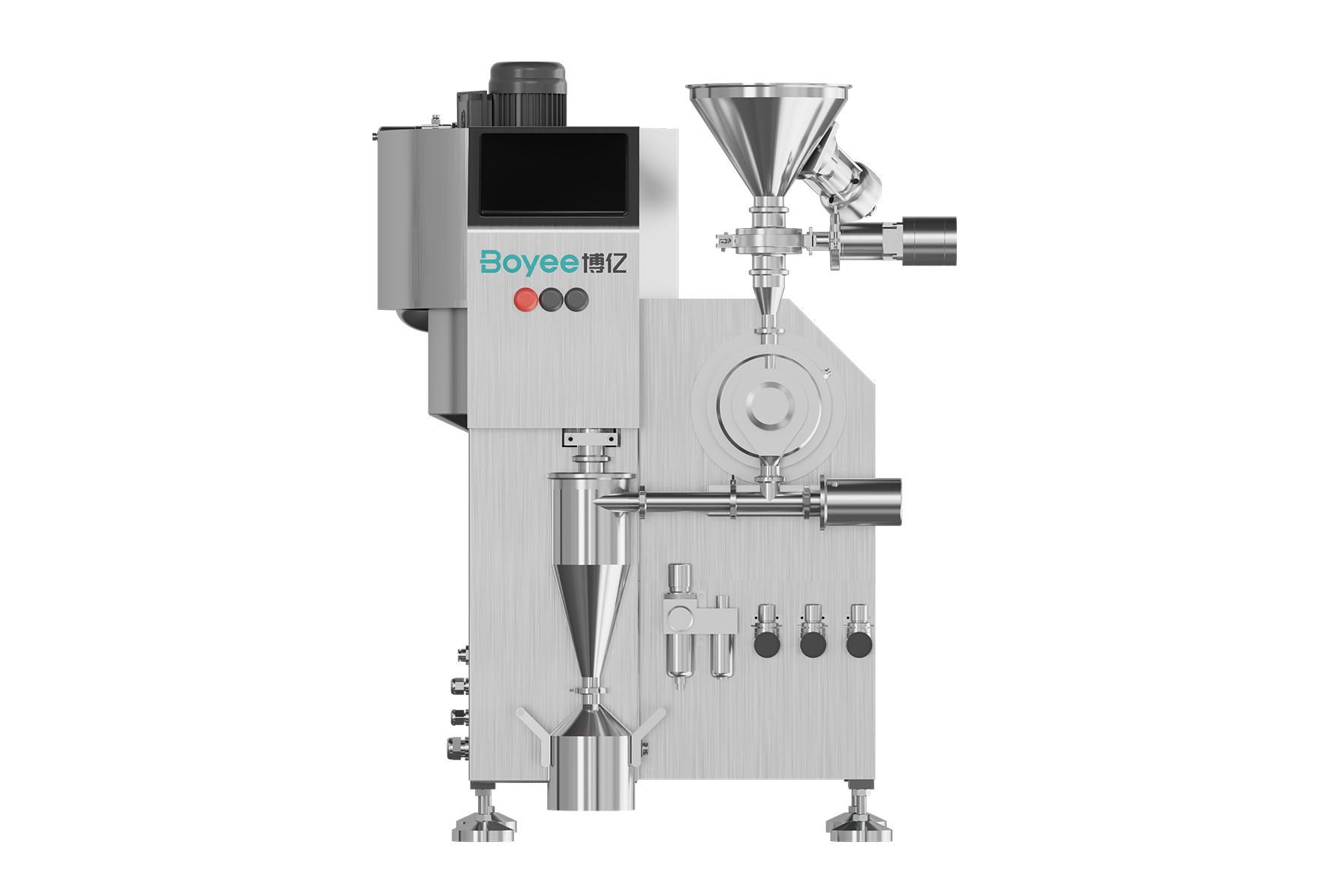

BY-GFM 1L
Equipment characteristics:
Uniform Grinding Force for Stable Fine Grinding
Real-Time Fineness Control with Ultra-Narrow Particle Size Distribution
Fluidized Bed Technology for Enhanced Classification Efficiency
Cost-Efficiency Meets Precision
Zero-loss Design
Intelligent Control
Ceramic Pin-type Structure

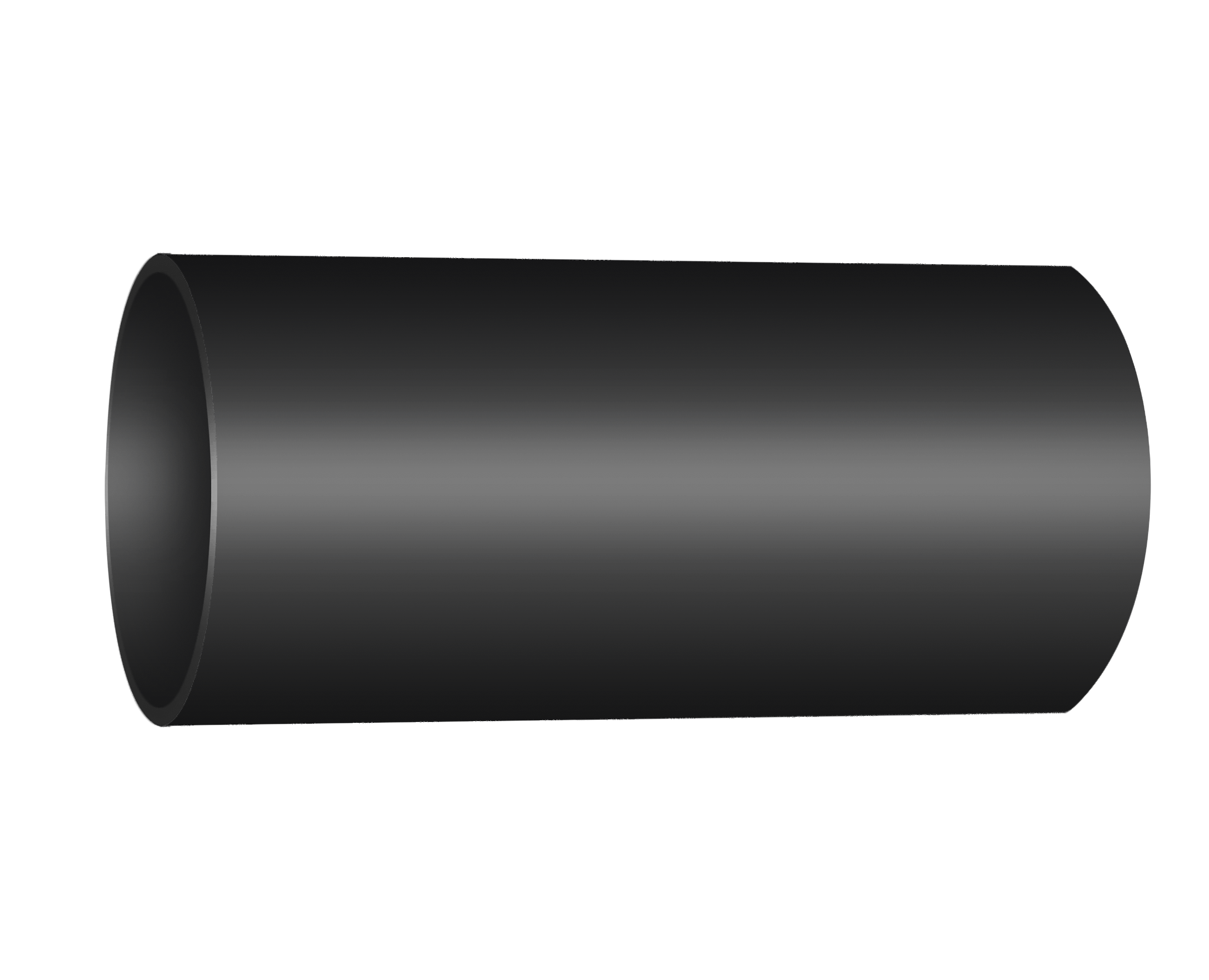

Silicon Carbide Grinding Chamber
High-Performance Classifier
1
Volume (L)
5-10
Production Capacity（kg/h）
2-3
Grinding Media Size (mm)
2.2
Main Motor Power (KW)
100
Weight(kg)
645x600x1400
Dimensions (mm)

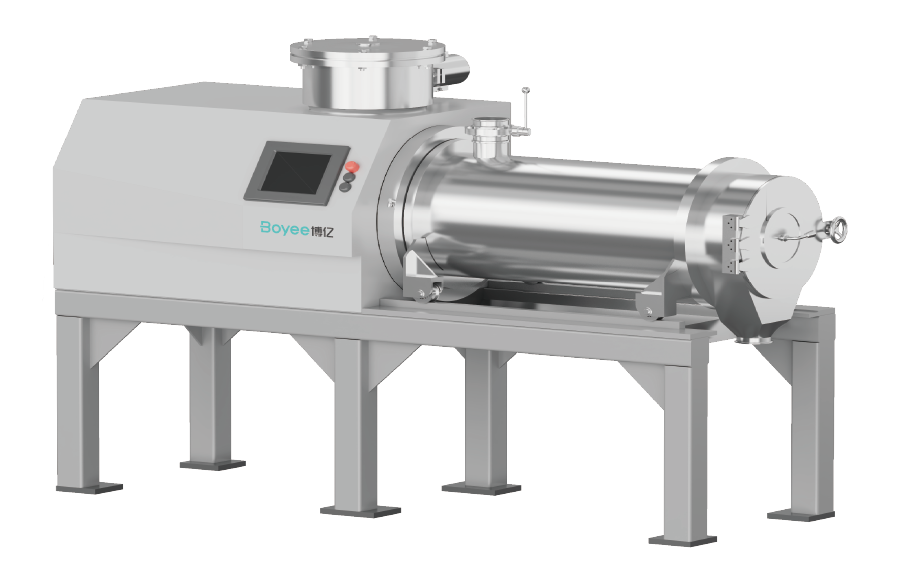

BY-GFM 5L
Equipment characteristics:
Uniform Grinding Force for Stable Fine Grinding
Real-Time Fineness Control with Ultra-Narrow Particle Size Distribution
Fluidized Bed Technology for Enhanced Classification Efficiency
Cost-Efficiency Meets Precision
Zero-loss Design
Intelligent Control
Ceramic Pin-type Structure
Silicon Carbide Grinding Chamber
High-Performance Classifier
5
Volume (L)
20-30
Production Capacity（kg/h）
3-5
Grinding Media Size (mm)
7.5
Main Motor Power (KW)
250
Weight(kg)
1300x600x1600
Dimensions (mm)

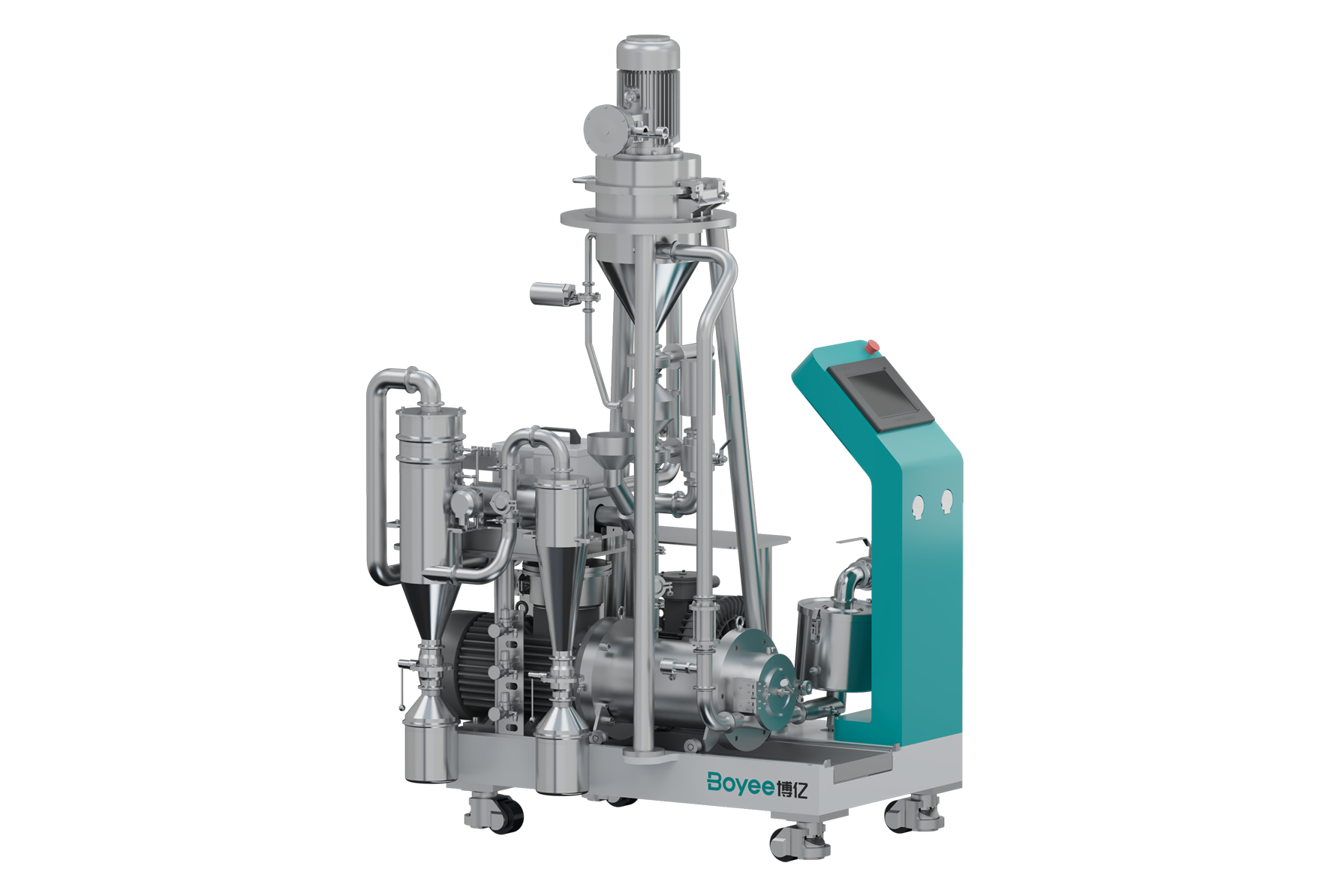

BY-GFM 60L
Equipment characteristics:
Uniform Grinding Force for Stable Fine Grinding
Real-Time Fineness Control with Ultra-Narrow Particle Size Distribution
Fluidized Bed Technology for Enhanced Classification Efficiency
Cost-Efficiency Meets Precision
Zero-loss Design
Intelligent Control
Ceramic Pin-type Structure
Silicon Carbide Grinding Chamber
High-Performance Classifier
60
Volume (L)
100-140
Production Capacity（kg/h）
3-5
Grinding Media Size (mm)
37
Main Motor Power (KW)
850
Weight(kg)
1800x900x1650
Dimensions (mm)
The grinding system can choose turbine and rod pin according to the requirements:

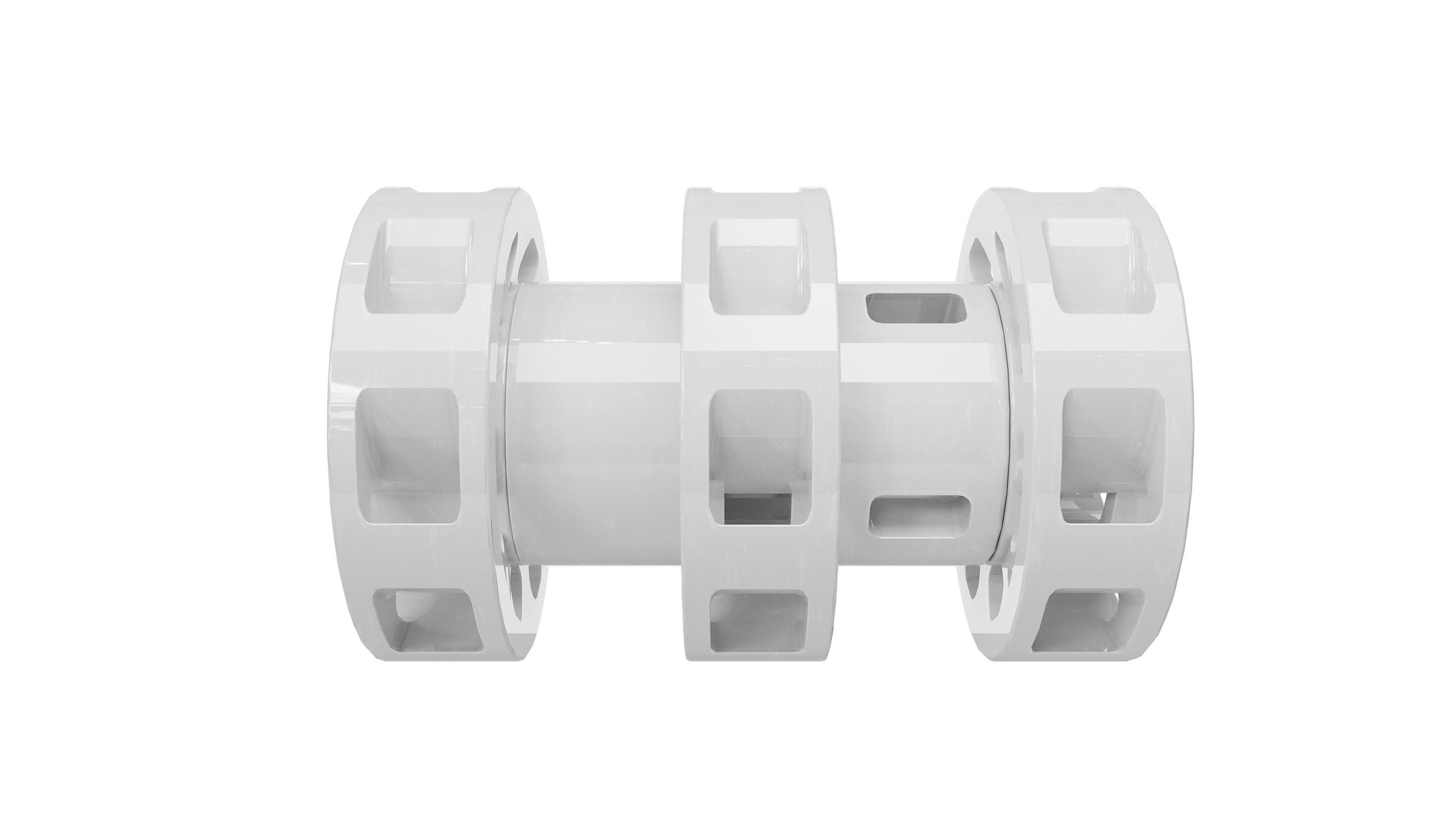

Turbine rotor
Providing more gentle and meticulous grinding effect can effectively prevent excessive material dispersion and improve TurboMax patented Turbine(Turbo) structure grinding quality and accuracy

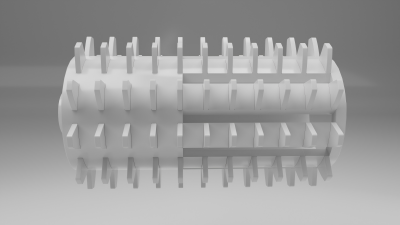

Rod pin rotor
The rod-pin rotor structure has high linear velocity, which can form continuous strong grinding in the grinding（Chamber), and the impact and grinding effect on the material is more intense
Zirconia

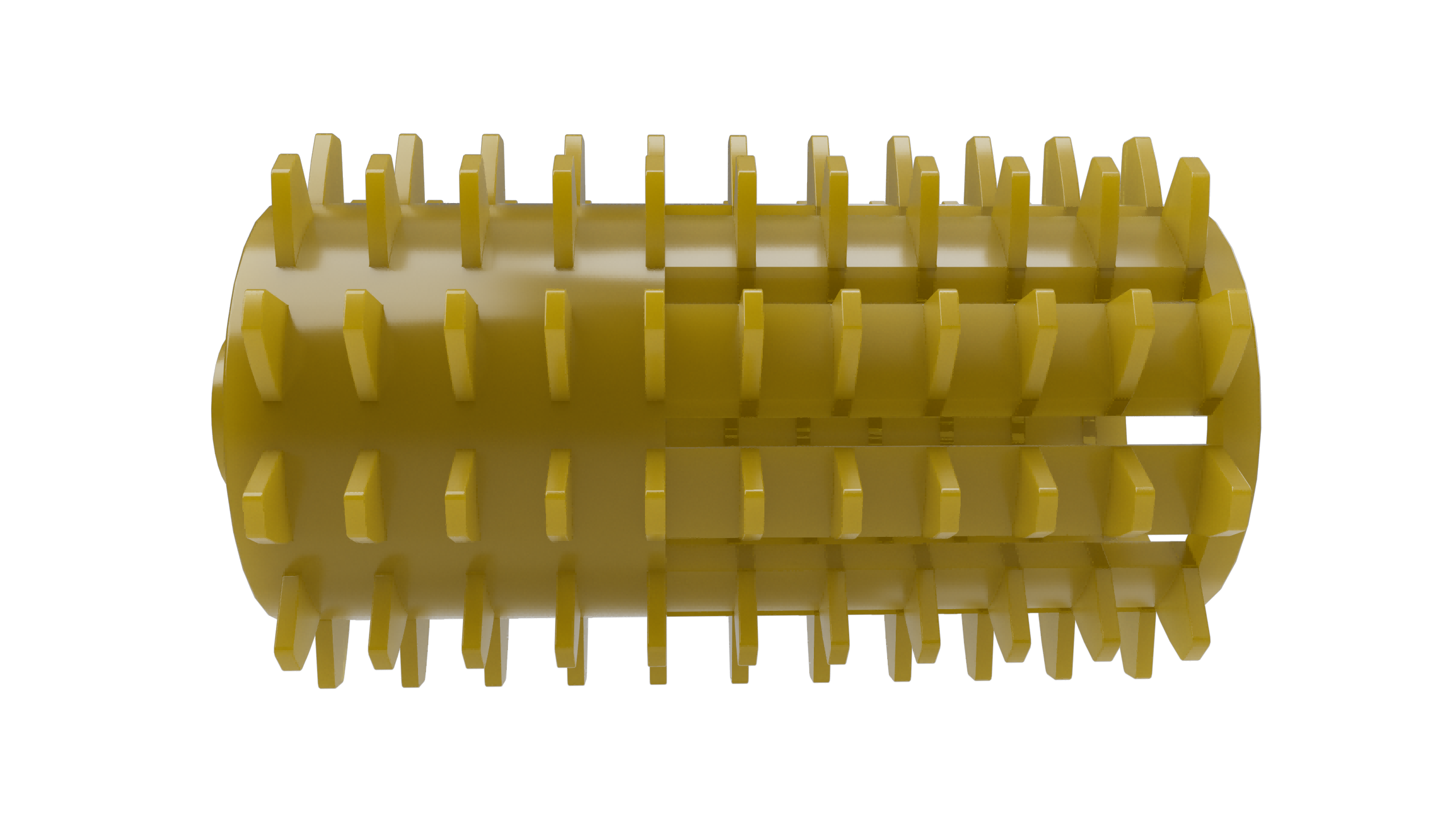

Polyurethane (PU)
