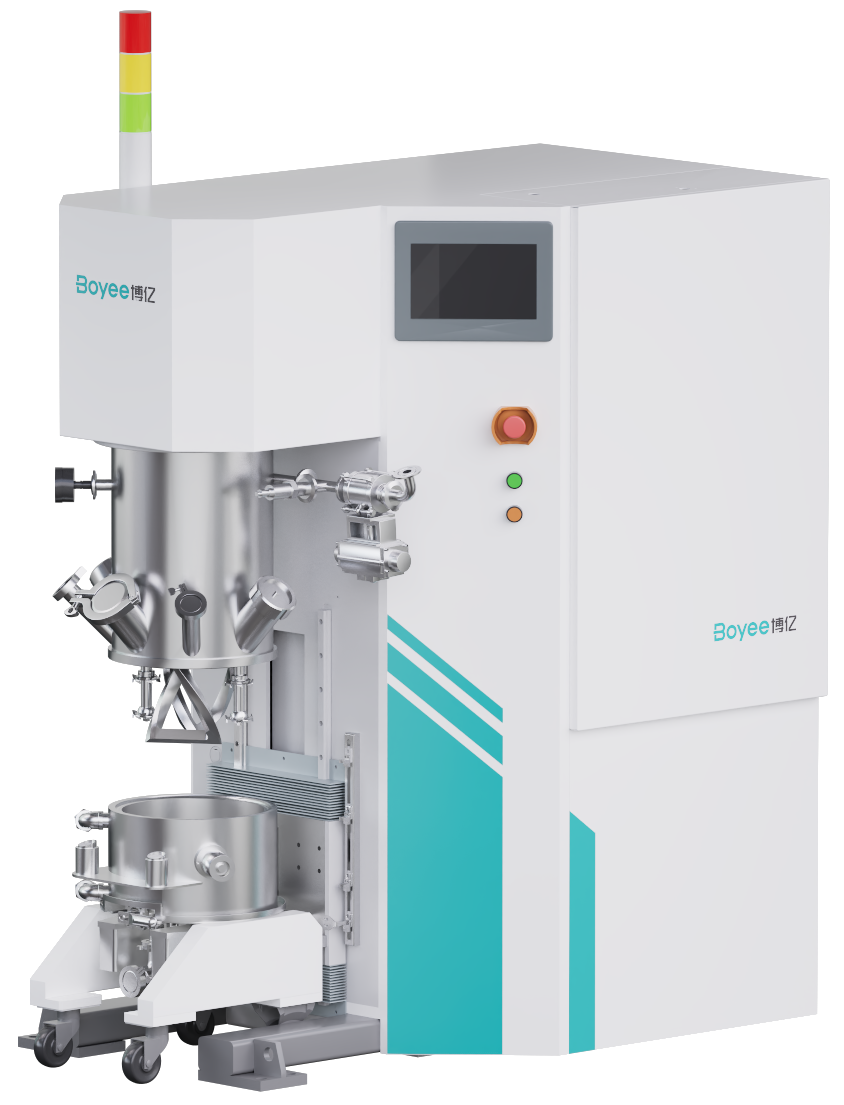

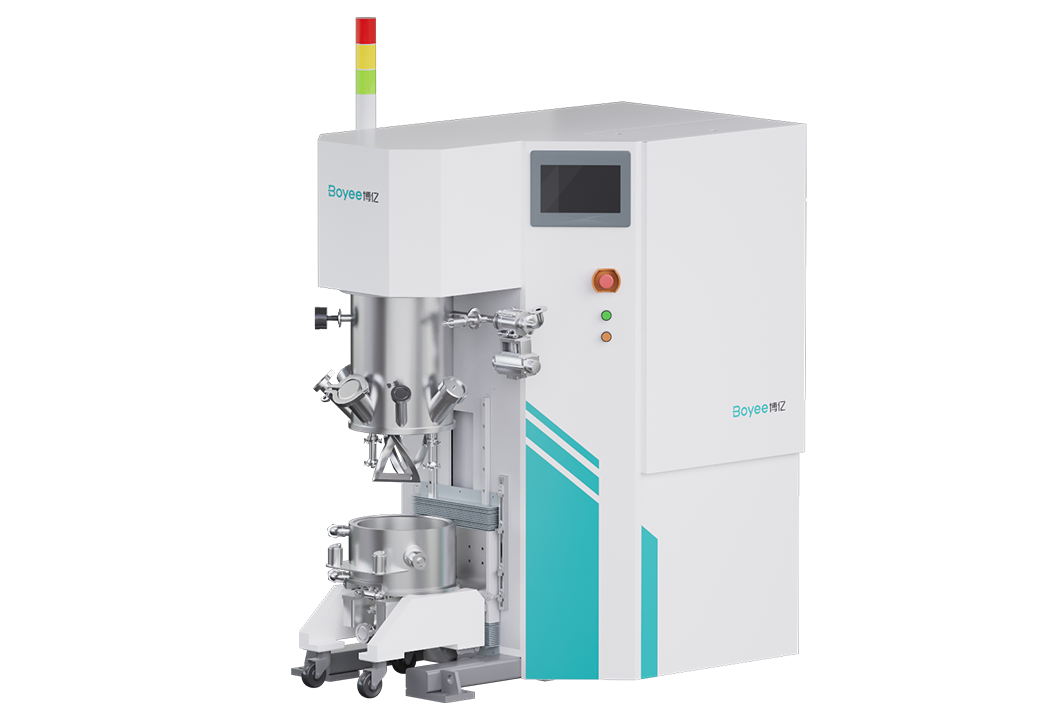

BY-MHY Dual Planetary Mixer
Multi-dimensional Mixing · Precision Wall Scraping · All-around Process Capability
Dual Planetary Revolution + Self-Rotation Material Mixing with No Dead Zones
01
Dual motion of rotation and revolution, powerrul shear mixing
02
Multiple agitator blades for diverse material processing applications
03
Auto wall-scraping, no material residue
04
One-touch lift and lower, anti-displacement lock
05
Double-layer barrel body with precise temperature control for multiple processes
06
Multi-dimensional Mixing · Precision Wall Scraping · All-around Process Capability
Same series of products
BY-MHY 2L
BY-MHY 6L
BY-MHY 10L
BY-MHY 15L
BY-MHY 20L
BY-MHY 30L
BY-MHY 100L
BY-MHY 150L
BY-MHY 200L
BY-MHY 300L
BY-MHY 600L
BY-MHY 800L
BY-MHY 1000L
BY-MHY 2000L
BY-MHY 2L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
5
Design Volume (L)
3000
Disperse Speed (rpm)
100
Mixing Speed (rpm)
3
Total Power (KW)
BY-MHY 6L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
10
Design Volume (L)
3000
Disperse Speed (rpm)
100
Mixing Speed (rpm)
4
Total Power (KW)
BY-MHY 10L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
15
Design Volume (L)
3000
Disperse Speed (rpm)
100
Mixing Speed (rpm)
4.5
Total Power (KW)
BY-MHY 15L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
20
Design Volume (L)
3000
Disperse Speed (rpm)
80
Mixing Speed (rpm)
5
Total Power (KW)
BY-MHY 20L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
25
Design Volume (L)
3000
Disperse Speed (rpm)
80
Mixing Speed (rpm)
6
Total Power (KW)
BY-MHY 30L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
40
Design Volume (L)
2800
Disperse Speed (rpm)
80
Mixing Speed (rpm)
8
Total Power (KW)
BY-MHY 100L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
140
Design Volume (L)
2800
Disperse Speed (rpm)
80
Mixing Speed (rpm)
20
Total Power (KW)
BY-MHY 150L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
190
Design Volume (L)
3000
Disperse Speed (rpm)
100
Mixing Speed (rpm)
4
Total Power (KW)
BY-MHY 200L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
280
Design Volume (L)
2800
Disperse Speed (rpm)
80
Mixing Speed (rpm)
30
Total Power (KW)
BY-MHY 300L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
380
Design Volume (L)
2600
Disperse Speed (rpm)
60
Mixing Speed (rpm)
38
Total Power (KW)
BY-MHY 600L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
700
Design Volume (L)
2200
Disperse Speed (rpm)
48
Mixing Speed (rpm)
82
Total Power (KW)
BY-MHY 800L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
1050
Design Volume (L)
1800
Disperse Speed (rpm)
48
Mixing Speed (rpm)
92
Total Power (KW)
BY-MHY 1000L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
1380
Design Volume (L)
1600
Disperse Speed (rpm)
40
Mixing Speed (rpm)
120
Total Power (KW)
BY-MHY 2000L
Optional:
Heating system
Cooling system
Discharge system
Feeding system
2400
Design Volume (L)
1200
Disperse Speed (rpm)
35
Mixing Speed (rpm)
140
Total Power (KW)
